the most trusted

all-tissue laser

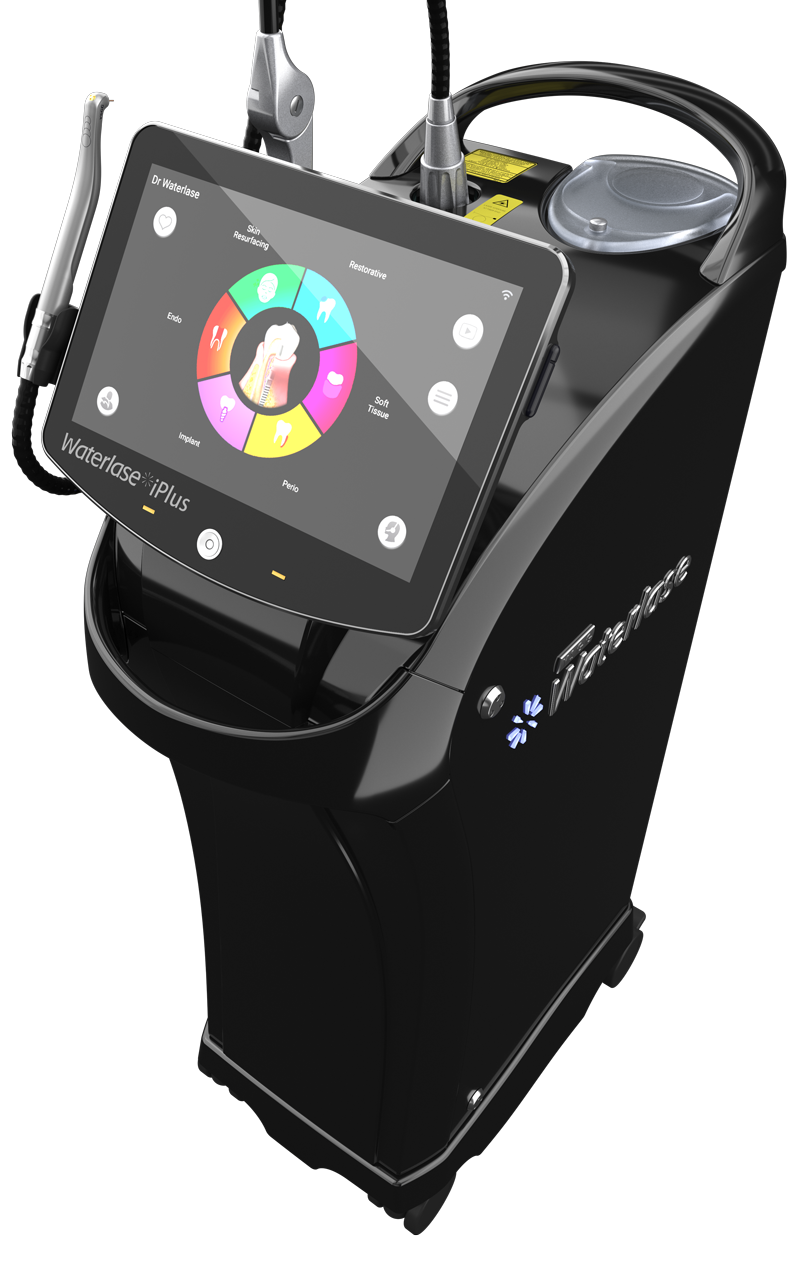

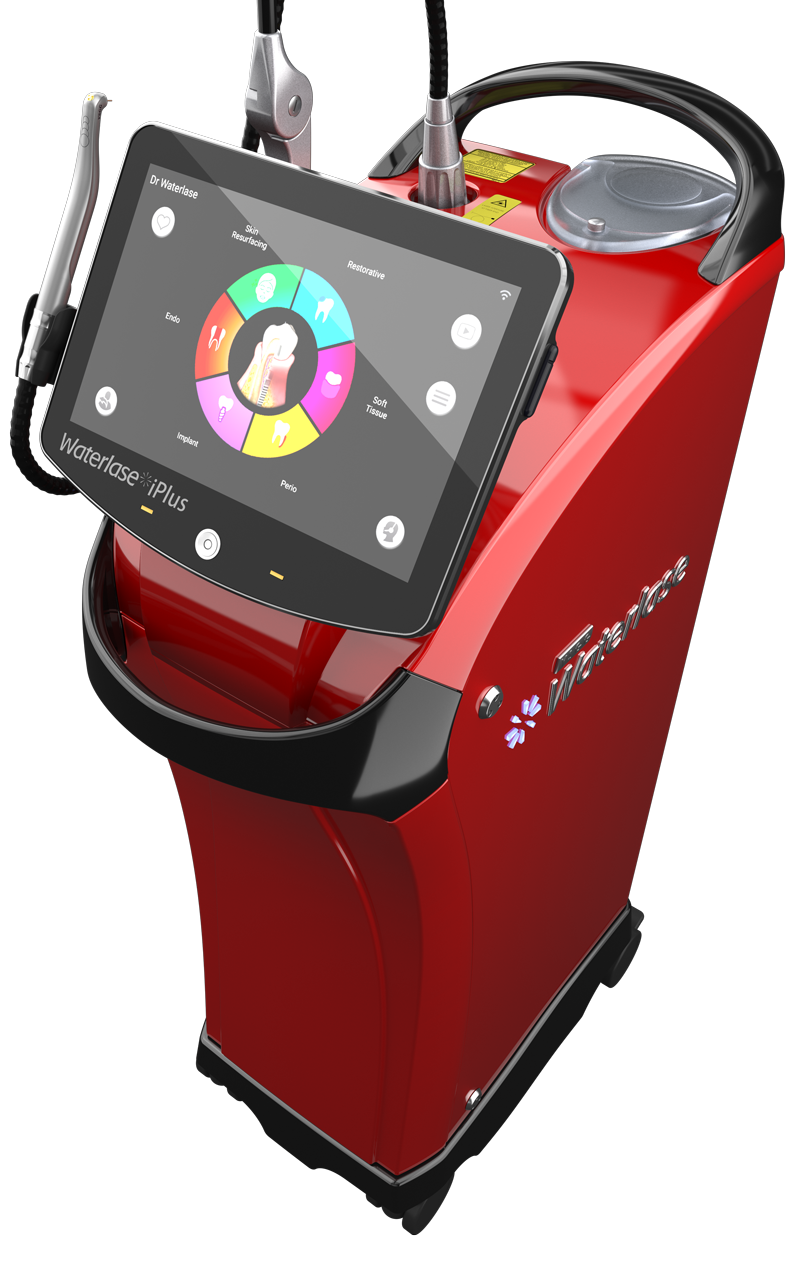

Iplus Frontface Close-Up

WATERLASE IPLUS

Redefine the Dental Experience
for Your Patients!

Waterlase iPlus is the market’s best-selling and most advanced all-tissue laser. This minimally invasive dental laser system features expanded and enhanced capabilities such as the SureFire delivery system and REPAIR protocols on board to give your patients the best possible experience, and give your practice an opportunity for practice growth.

Waterlase features up to 10W of power, dozens of procedural pre-sets, and an easy-to-use interface to simplify the operation of this versatile clinical tool.

Contact Us to Learn More

Resolve Daily Clinical Challenges

Every day, you face numerous clinical challenges – from controlling bleeding, managing impinged tissue, accessing decay in tough-to-reach proximal surface. Fortunately, Waterlase iPlus offers you complete versatility across all tissue types, and the ability to swap from one procedure to the next effortlessly.

Smile Design
Waterlase Dentist

Supreme Patient Comfort and Results

Waterlase iPlus is engineered to provide a refreshing, comfortable patient experience when compared to traditional tools such as needles, drills and scalpels. In an age where patient satisfaction is communicated in public ways, your practice needs the best, most comfortable options available.

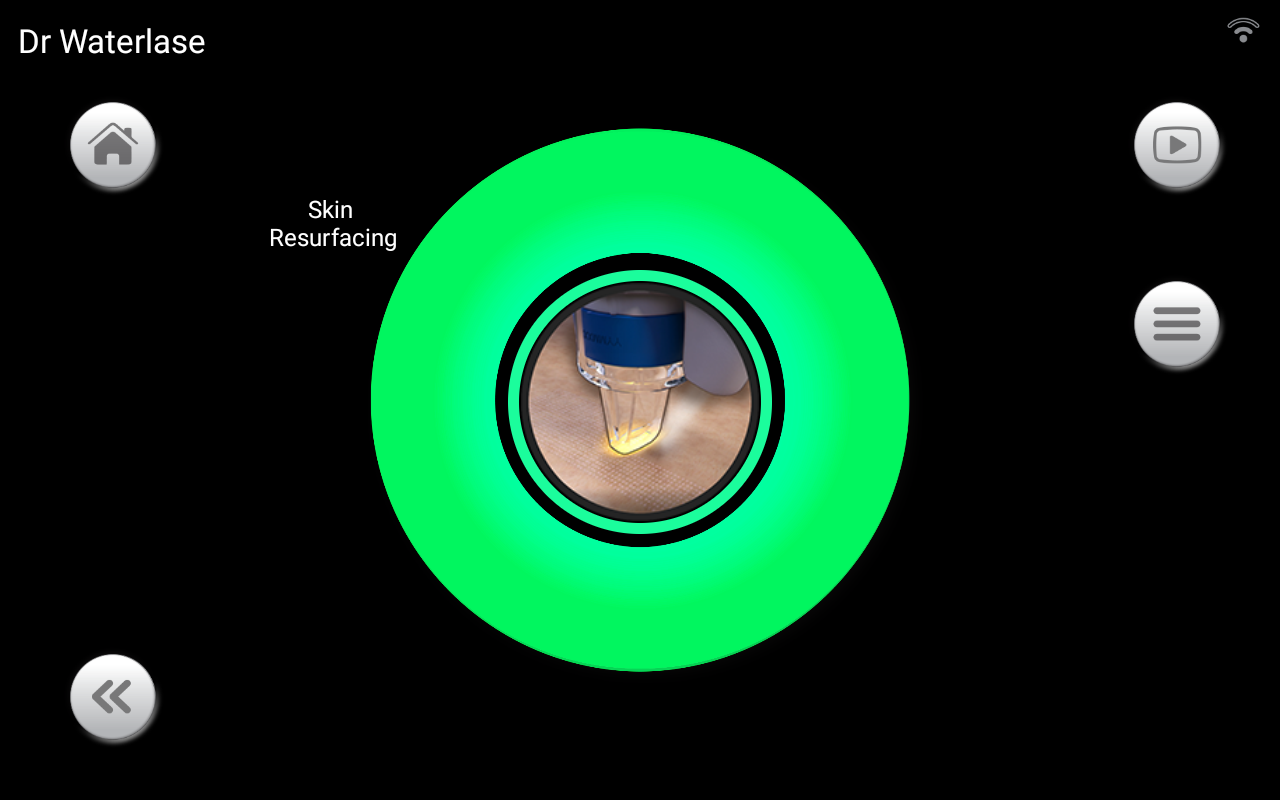

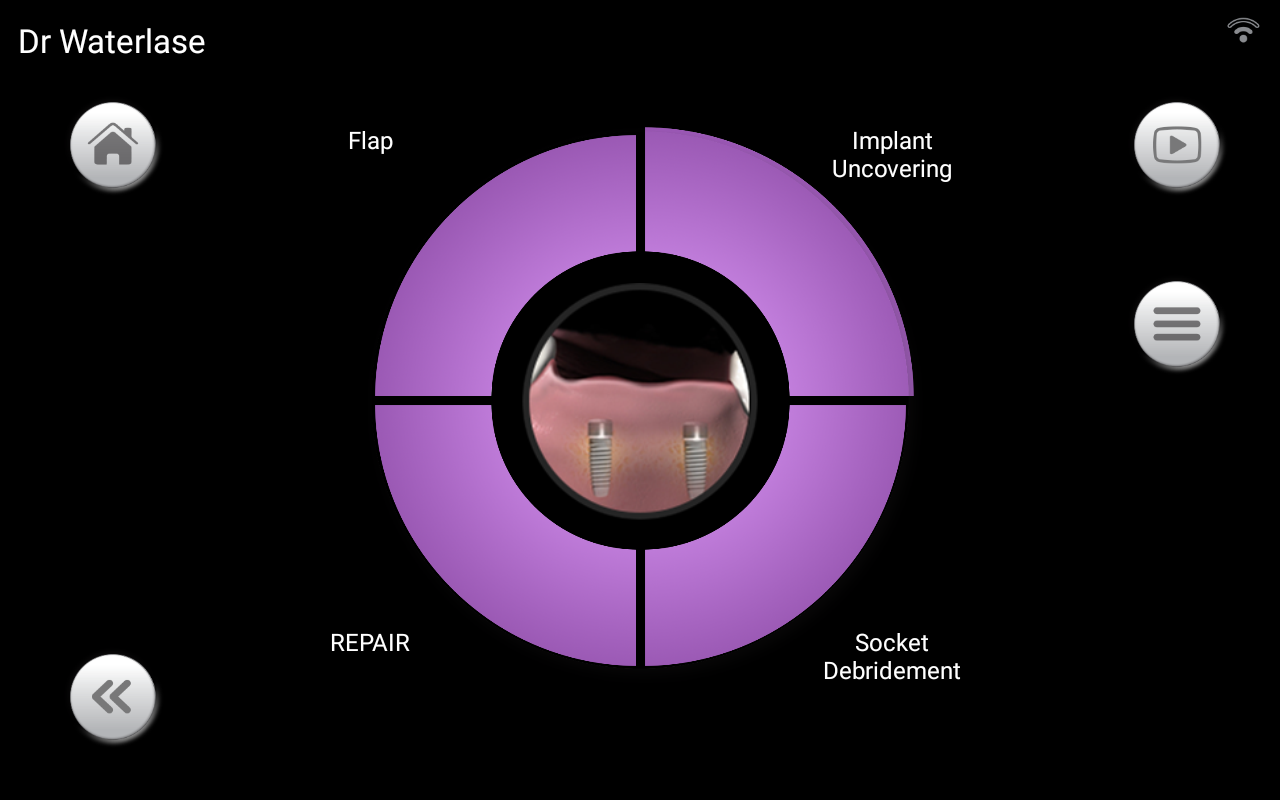

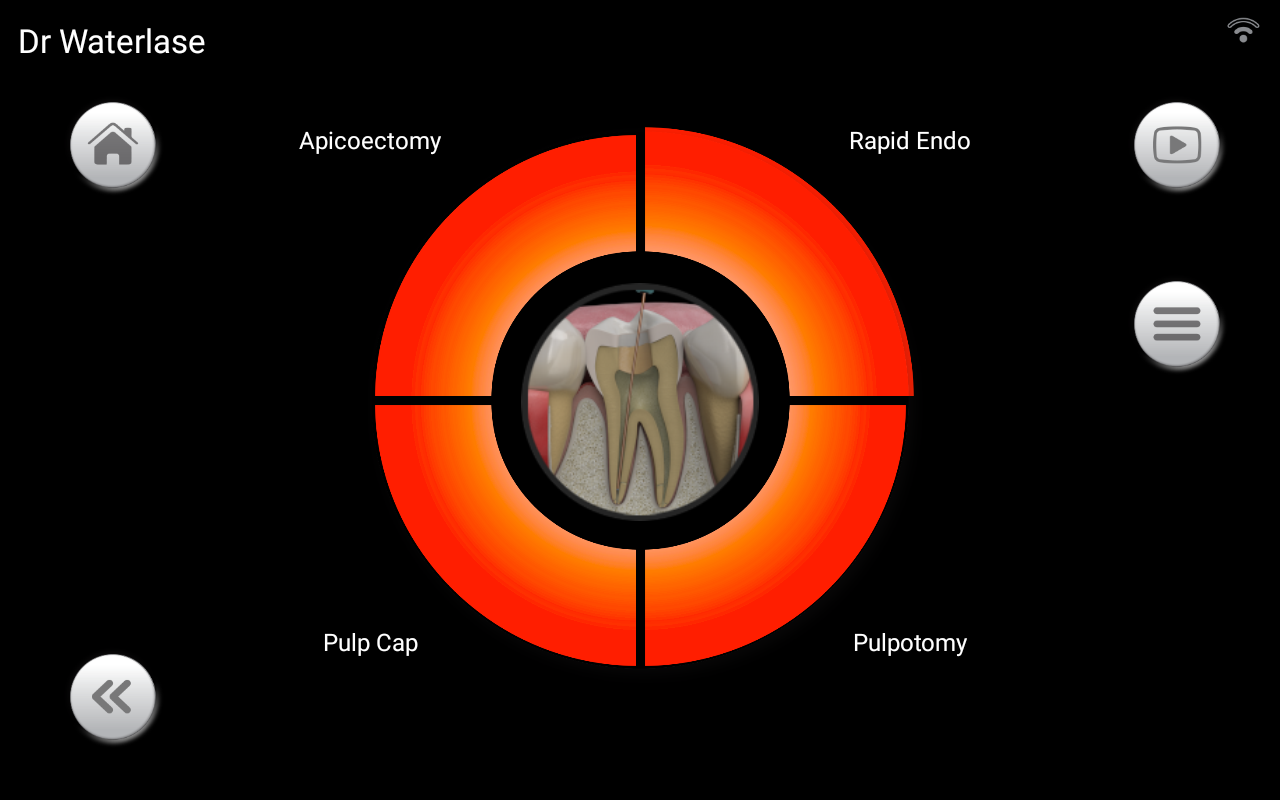

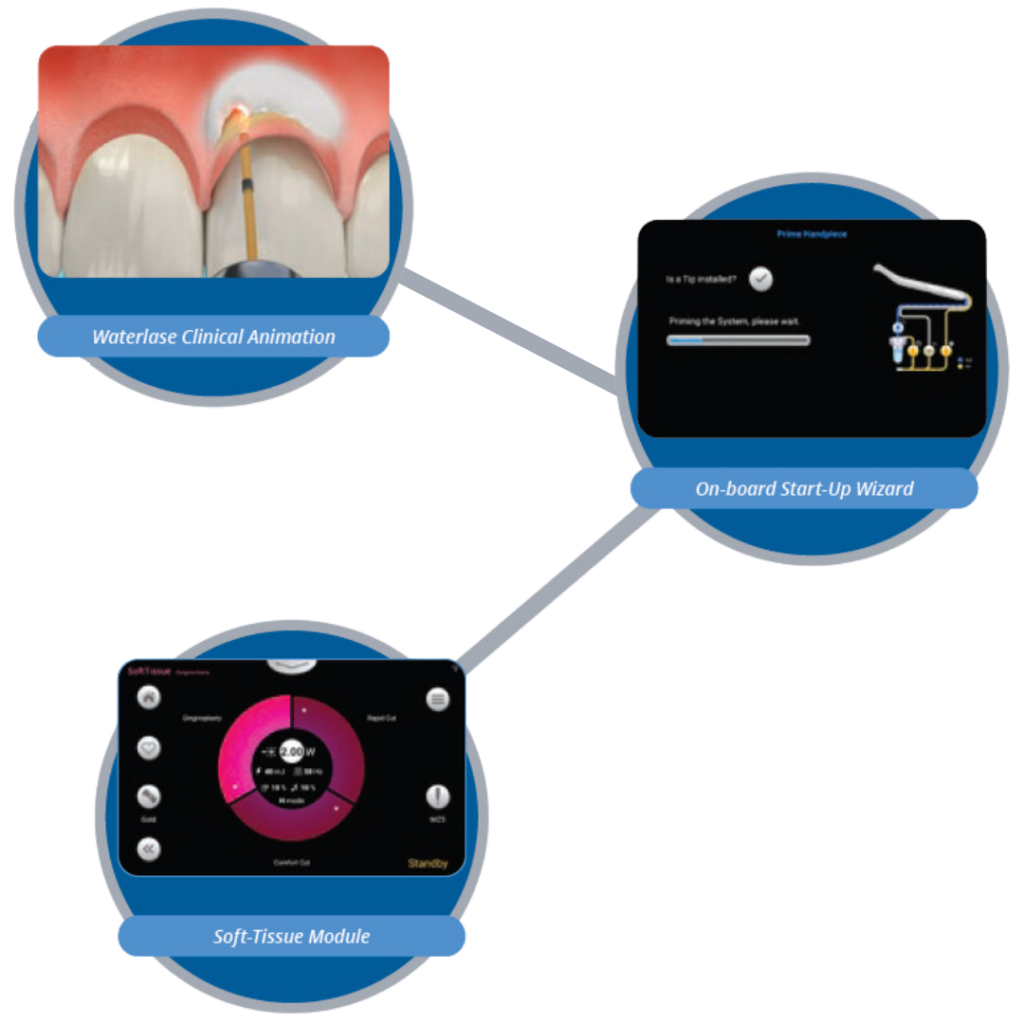

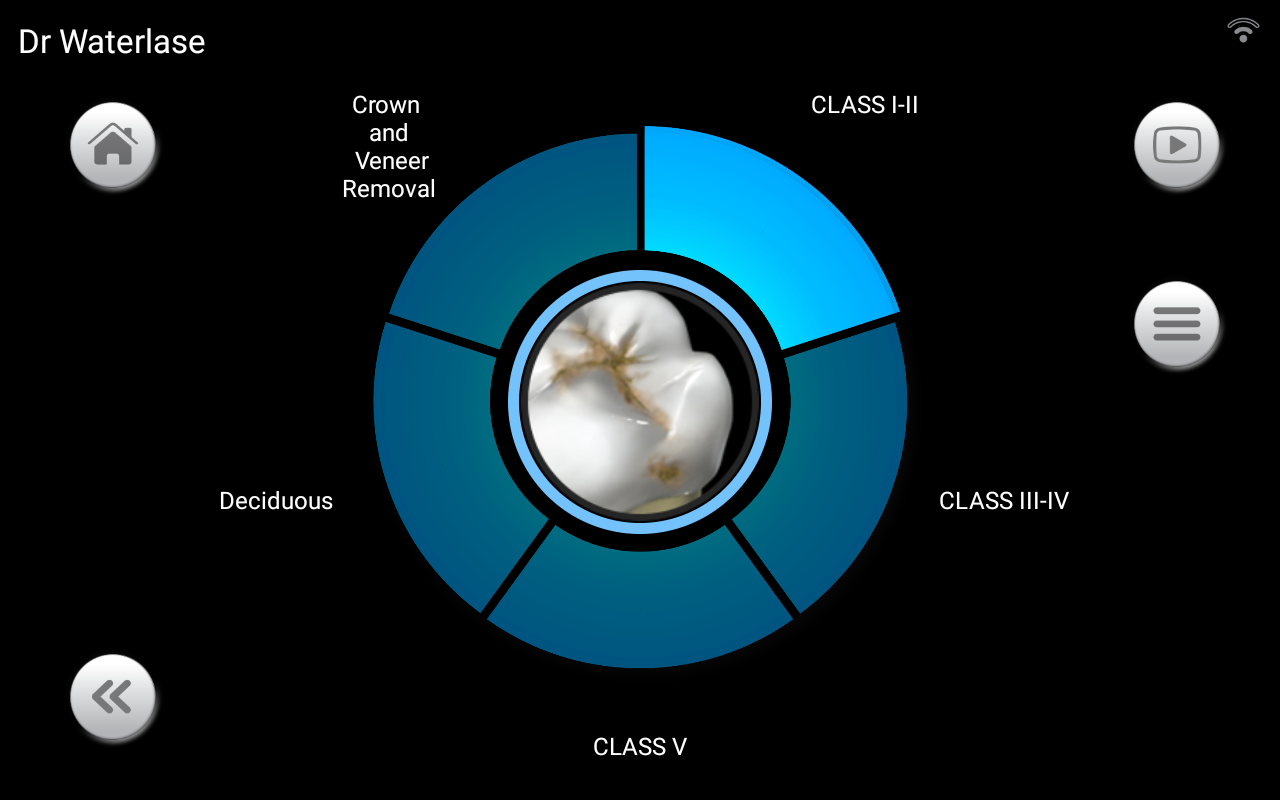

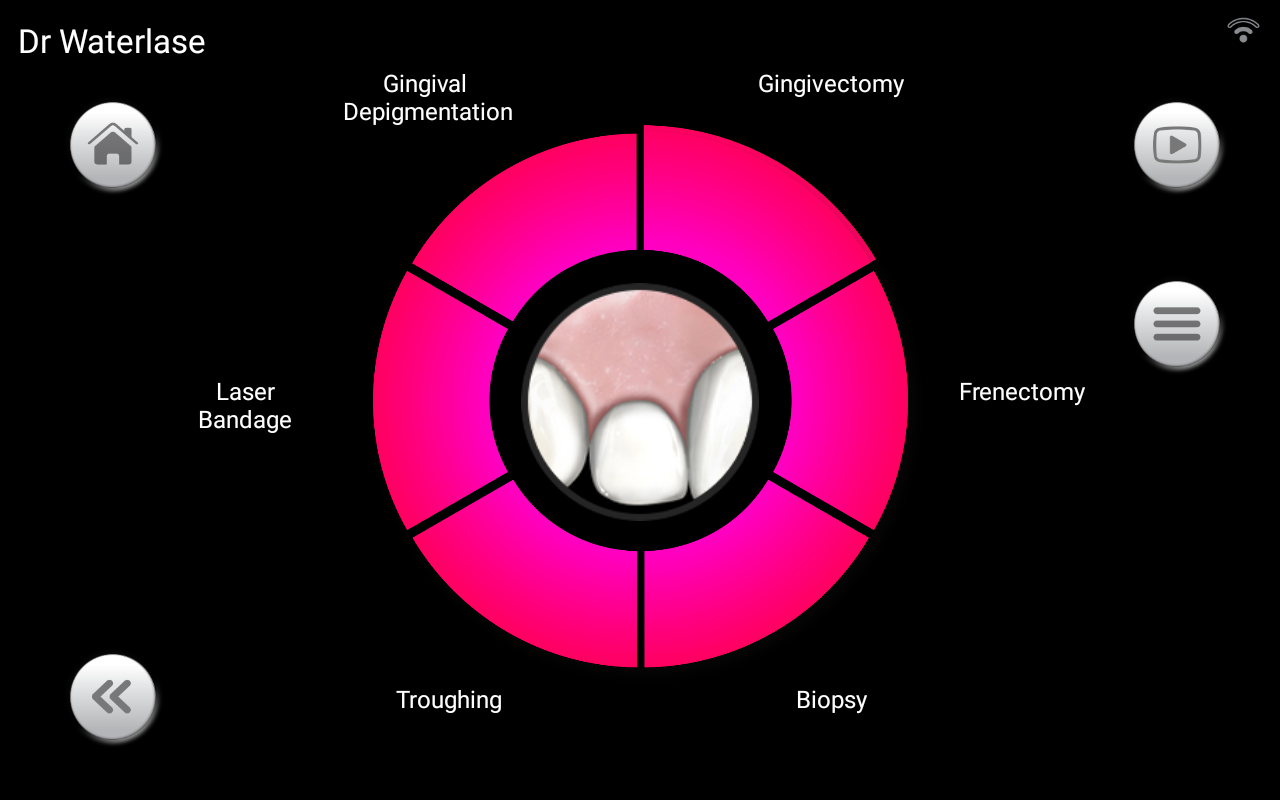

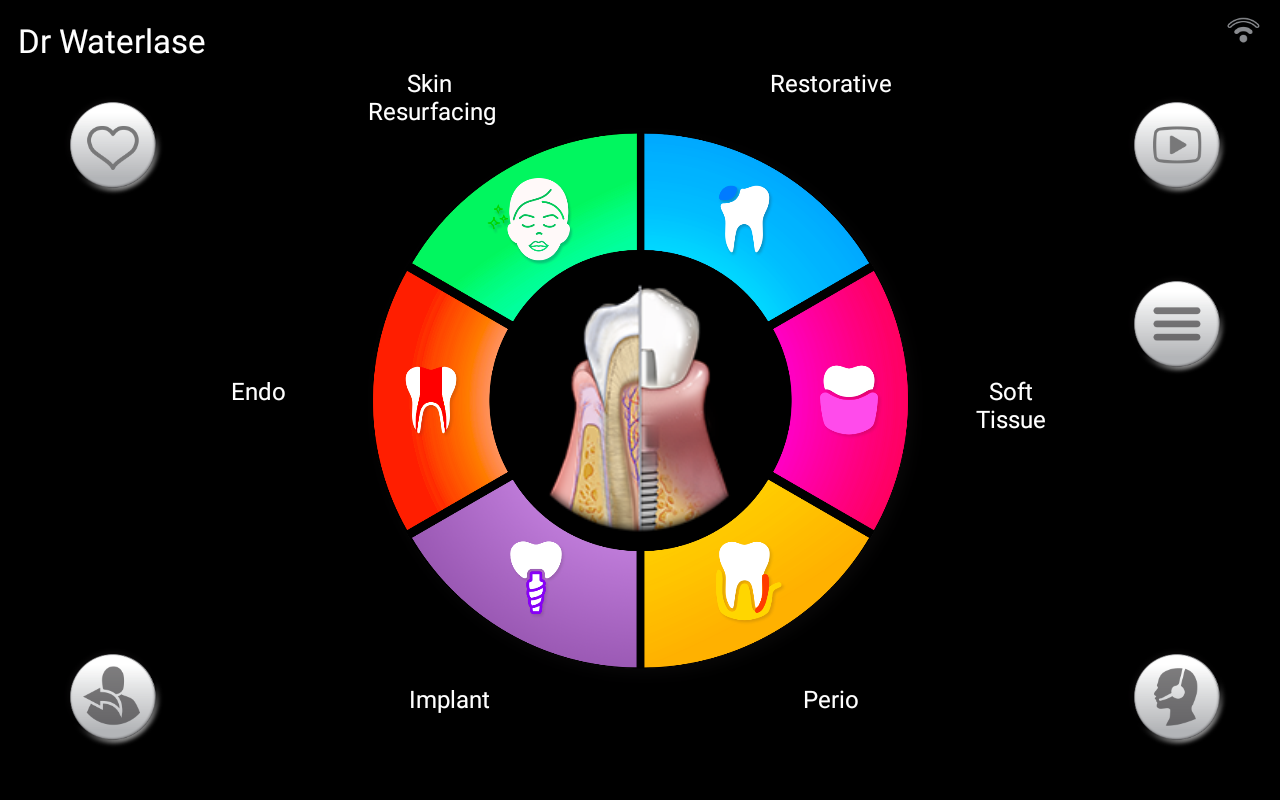

Pre-Set Procedures and Protocols

Waterlase iPlus is cleared for over 80 different indications for soft tissue, hard tissue, and bone – more than any other dental laser! Waterlase iPlus leads to improved results by empowering you and your team to offer patients the best possible dental experience with single-visit, multi-quadrant, minimally invasive dentistry.

Waterlase iPlus Protocols

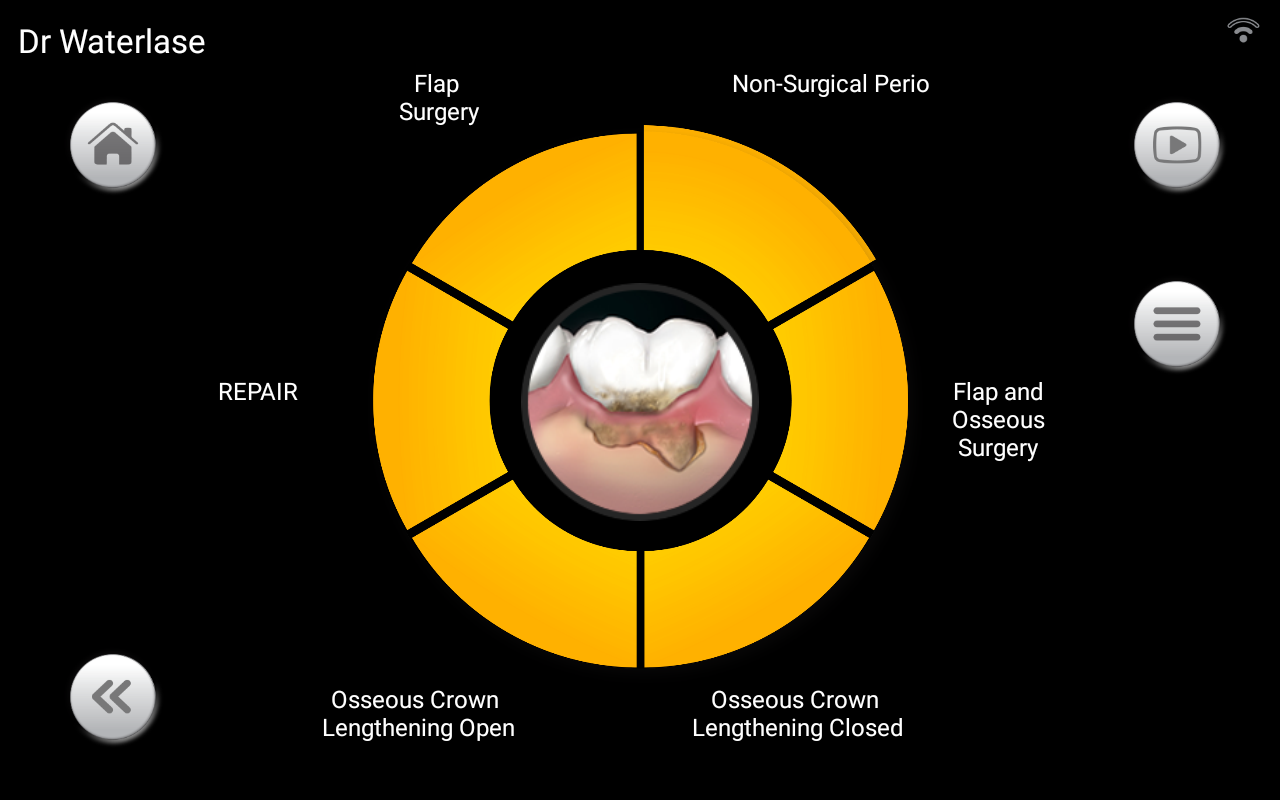

Waterlase Periodontal Treatment

Flexible, Reliable, Proven Technology

With more than 15,000 dental offices around the world deploying Waterlase technology, the system is reliable, durable and flexible for almost any dental practice or specialty office.

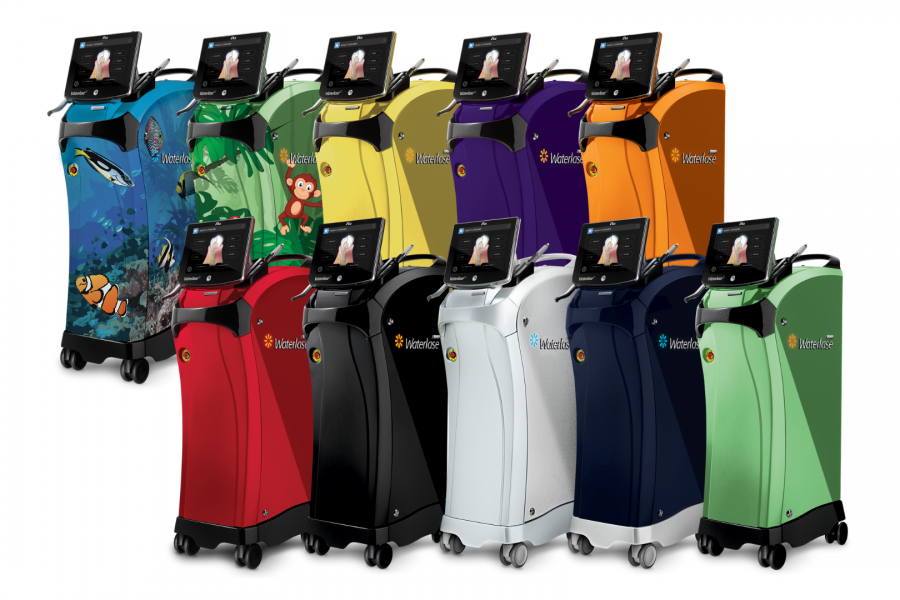

Waterlase iPlus in Color

Waterlase iPlus is available in various colors and a collection of unique themed finishes. No matter your practice décor, there is a version of Waterlase iPlus that will complement your operatory nicely. Choose your color and become a Waterlase Dentist today.

Waterlase iPlus Colors

Technical Specifications

Dimensions 11 x 19 x 33 in (28 x 48 x 84cm)
Weight 75 lbs. (34 kg)
Operating Voltage 100 VAC +/- 10% / 230 VAC +/- 10%
Frequency 50/60 Hz
Current Rating 5A / 8A
Main Control Circuit Breaker
On/Off Control Keyswitch
Water Type Distilled or De-ionized Only
External Air Source 80 – 120 psi (5.5 – 8.2 bar)(4.1-8.2 bar)
Interaction Zone 0.5 – 5.0 mm from Handpiece Tip to Target
Laser Classification IV (4)
Medium 2,780nm
Frequency 5 – 100 Hz
Average Power 0.1 – 10.0W
Pulse Energy 0 – 600 mJ
Pulse Duration for “H” Mode 60 µs
Pulse Duration for “S” Mode 700 µs
Tip Diameter 200 – 1200 µm

Made in USA

The first Waterlase iPlus debuted in February 2012. Since then, the technology has been updated, refined and enhanced on numerous occasions to ensure the best experience for dentist and patient alike.
