Quality at an afforable price

epic Q laser

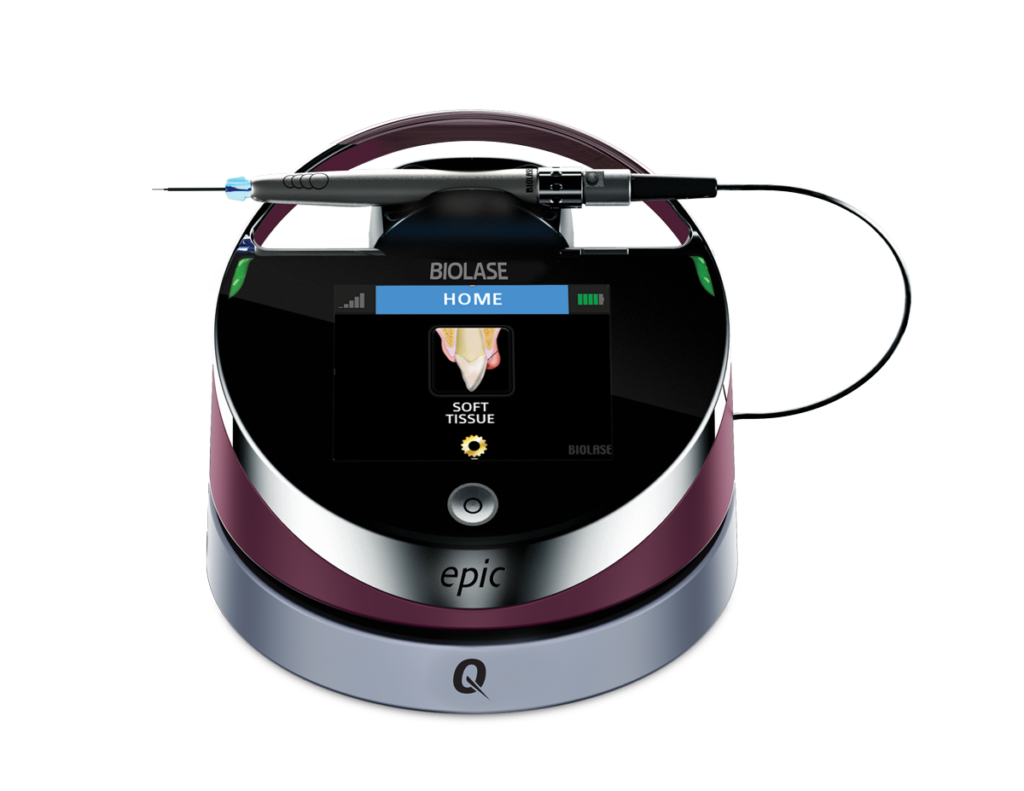

Epic Q Soft-Tissue Surgical Dental Laser

epic Q™

Think Quality. Think Epic Q.

While all diode lasers use heat to cut, many increase tissue temperature excessively, causing patient discomfort. The 940nm wavelength, featured exclusively in Epic soft-tissue laser systems, is better absorbed by hemoglobin and oxyhemoglobin than other wavelengths. The Epic Q cuts faster at lower power with less heat, for greater patient comfort at an affordable price.

*Epic Q is intended for sale outside the U.S. or Canada where Epic X has not yet received regulatory clearance. Check with your local distributor to see if Epic Q is right for your practice. For dentists in the U.S. and Canada, please see Epic X.

Contact Us to Learn More

Epic Wavelength Absorption

The Perfect Wavelength

  • Developed exclusively by BIOLASE
  • Better absorbed by hemoglobin and oxyhemoglobin than other wavelengths1
  • Cuts efficiently at lower power and with less heat1

1 Georgi. Petrov, Alexander Doronin, Harry T. Whelan, Igor Meglinski, Vladislav V. Yakovlev, “Human tissue color as viewed in high dynamic range optical spectral transmission measurements,” Biomed. Opt. Express 3, 2154-2161 (2012); http://www.opticsinfobase.org/boe/abstract.cfm?uri=boe-3-9-2124>

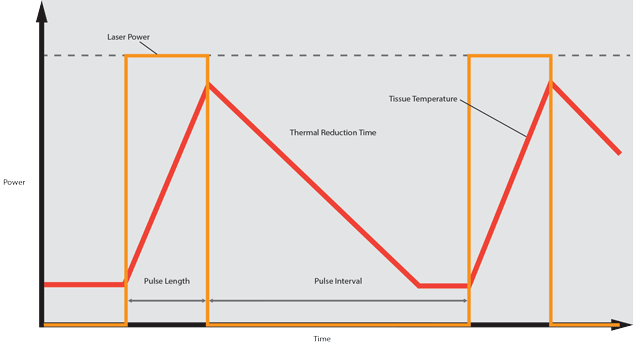

The Ultimate in Patient Comfort

The Epic Q Soft-Tissue Laser System has one of the shortest pulses of any dental diode laser, as low as 10 microseconds on and 40 microseconds off for peak thermal relaxation. This provides cleaner cutting with minimum discomfort through its proprietary ComfortPulse pulse modulation. Epic Q helps keep patients more comfortable by significantly reducing the amount of time the laser is actually cutting, to reduce sensitivity from heat buildup at the surgical site. This unique combination of features (wavelength and pulse modulation) means you can perform most soft-tissue procedures using topical anesthetic only.

Patented ComfortPulse technology
Faster Surgery

Faster Treatment Means Higher ROI

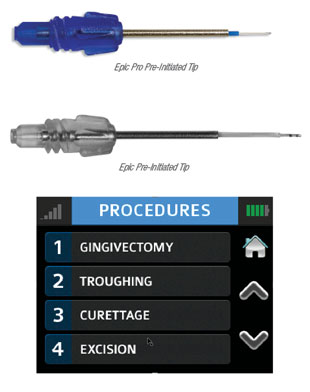

Get to Treatment Faster

Choose from standard diode laser tips or our exclusive pre-initiated tips to begin laser therapy faster than ever.

Quick, Intuitive Interface

Fast access to presets as well as the ability to save custom settings streamline procedures for less chair time.

Long Lasting Battery

Work through the day with up to 8 hours of dependable, long-lasting rechargeable battery life.

Clinical Video

Epic Laser Biopsy

BIOLASE

Epic Laser Troughing

Dr. Russel Morrow

Epic Herpetic Lesion

BIOLASE

Technical Specifications

Laser ClassificationClass IV (4)
MediumInGaAs Semi-conductor diode
Wavelength940 nm
Max Power Output3 W (Peak Power 5 W)
Operating Voltage100 V – 240 V at 1.5 A
Frequency50/60 Hz
Main ControlPower Switch
Remote InterruptionRemote Interlock
Disable ControlEmergency Stop Button
DC Power Supply Module12 V (DC), 5 A
Power ModesContinuous, Pulse Modulation
Fiber Tip Diameter200 µm, 300  µm, 400 µm
Pulse Duration0.01ms – 20 ms
Pulse Interval0.01ms – 20 ms
Pulse Repetition RateUp to 20 kHz (for reference)
NOHD8 feet, 10 inches (2.71 meters)
Beam Divergence7-25.4 degrees per side angle
Standard Fiber Cable Length6 feet, 7 inches (2 meters)

Made in USA
